Prototype Phase

Product Development Phase

Technical Implementation Phase

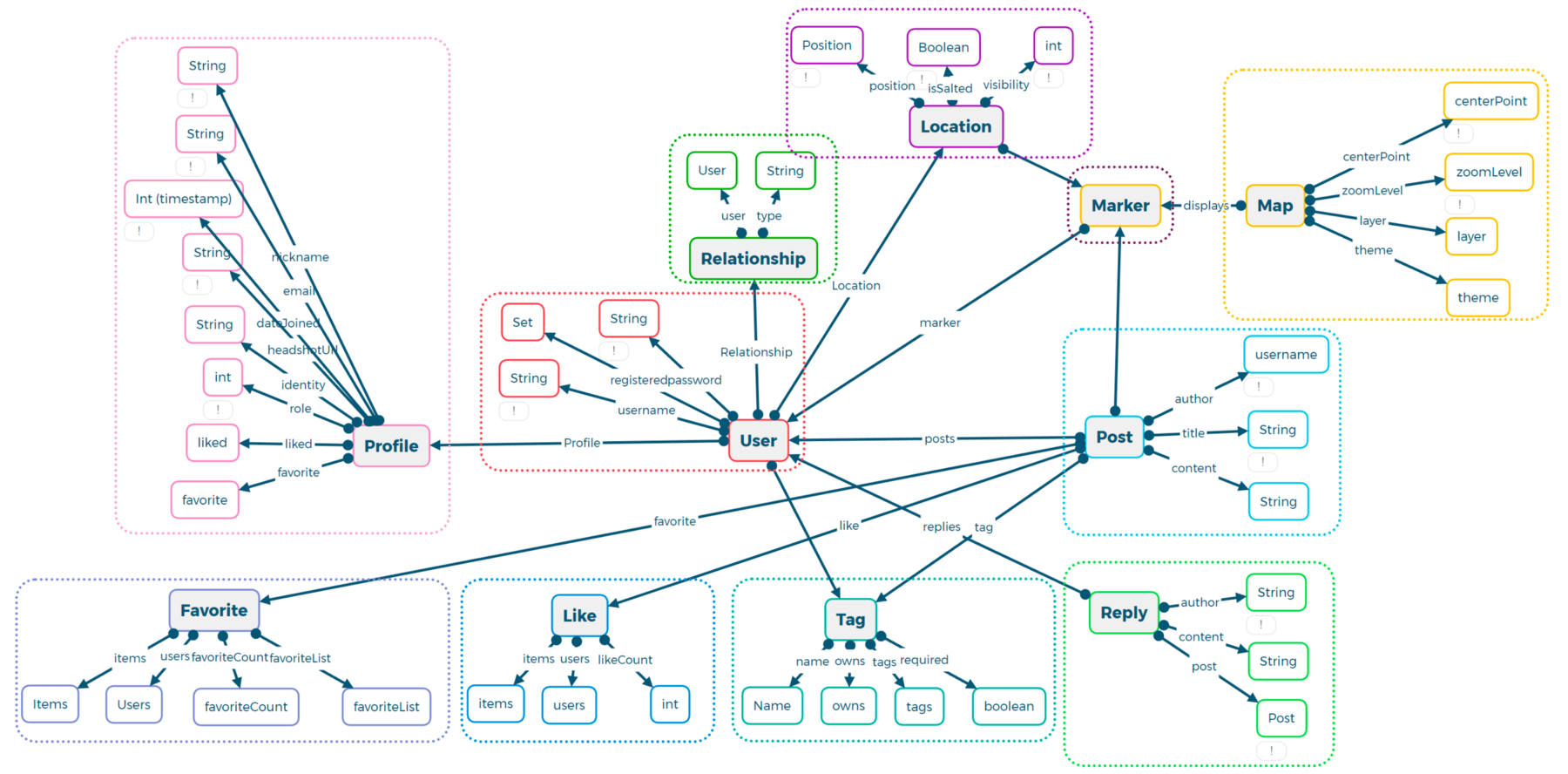

Backend Design Document

app WeeHive
concepts
	User
	Profile [User.User]
	Relationship [User.User]
	Session [User.User]
	Post [User.User]
	Reply [Post.Post, User.User]
	Tag [Post.Post / User.User] // how to define a concept that can be applied to both?
	Favorite [Post.Post]
	Like [Post.Post]
	Map
	Marker[User.User] // to display the sentiment calculated from reactions for each post.
	Location [User.User]
	Nearby [User.User]

Frontend Design Document

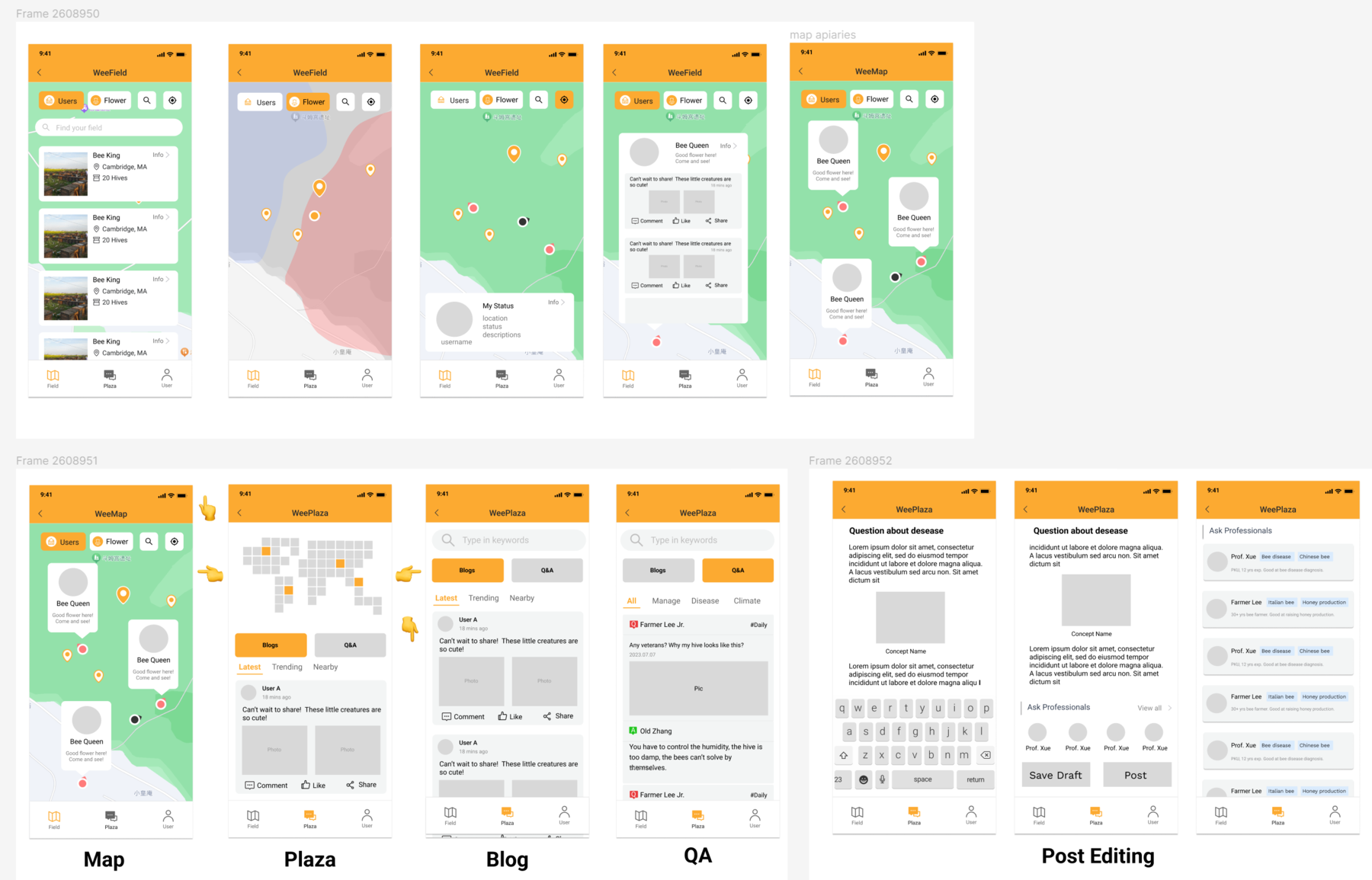

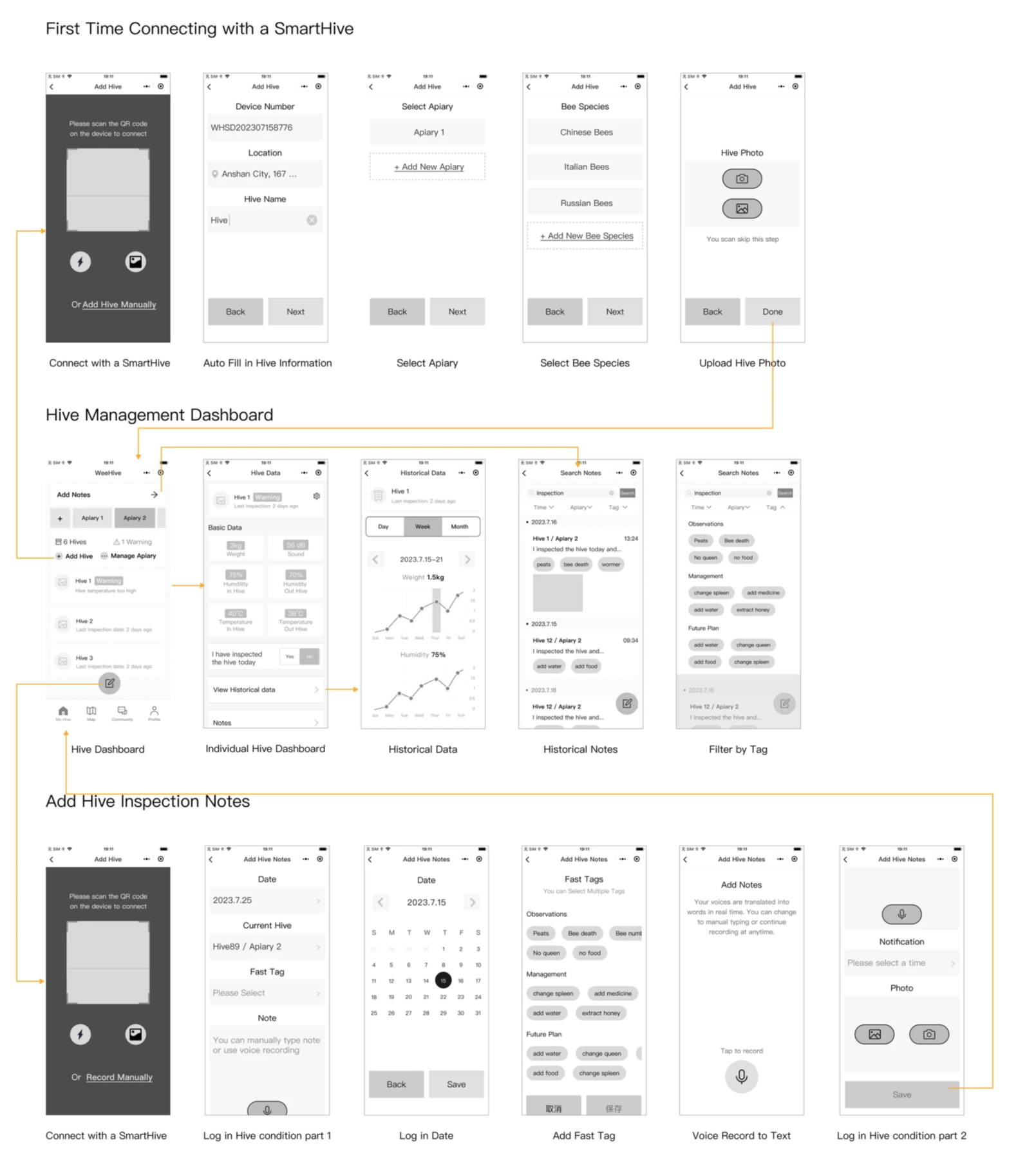

Fig.1 Current Wireframe

Features and Reactive Components

1. Responsible Layout

   I use CSS to create two versions of layout, one for desktop use and one for mobile use. They considered the us



2. User statistics & Abstracted map

   This hexagonal map is an entrance to show the current user number and a quick switch for the user to enter that region. The user can click on one of the hexagons and after an animation the user will be directed to the selected region central of the map.



3. Interactive Map

   Powered by leaflet, the app provides a multi layer map that can allow users to view vegetation cover and a fun to watch watercolor map



4. Like/Favorite buttons

   User can like and favorite a post or reply by clicking the icons. The icons will update its appearance to show its states. It will also update the like counts automatically.



5. Post filtering function

   By pressing the filter button, the user can filter out different types of posts

   Notice the icons are automatically calculated by the type of the post



6. Relationship : following and user filtering
